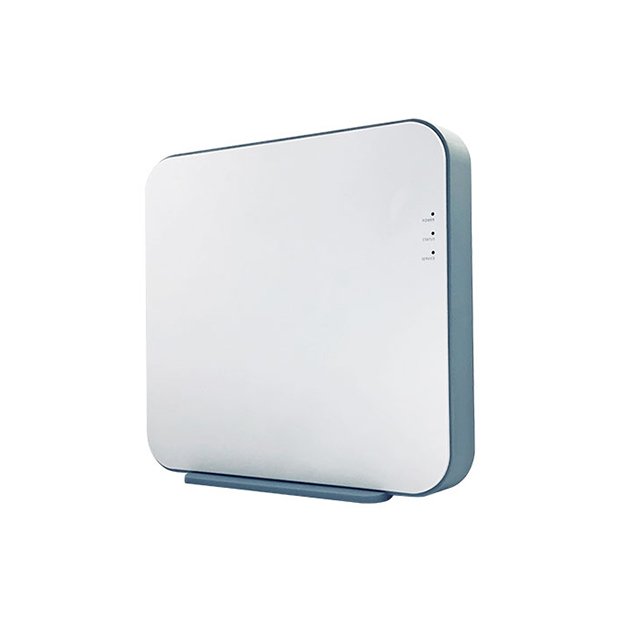

Dual LTE Small Cell
SFE306X

Dual LTE Small Cell

採用 CA 載波聚合技術,帶來極速上網體驗。
小型基地台可以協助電信業者擴展收訊範圍與流量,更能有效分流龐大的網路數據流量。此外,小型基地台能補足訊號通過障礙物時所造成的訊號損失,能以更低的成本有效促進網路收訊品質,減少使用大型基地台的手機數量,大幅提升網路頻寬,使用者體驗更佳。
分享

採用 CA 載波聚合技術,提供極速上網體驗。

詳細規格

Small Cell Mode

  • Band: LTE FDD B1/B3 or B1/B7
  • Carrier Aggregation: 2 x CA
  • Antenna: 2 x Internal Omni Antennas
  • Diversity: 2T x 2R MIMO
  • LTE-Uu: 3GPP R10
  • S1: 3GPP R11
  • X2: 3GPP R11
  • O&M: BF TR-069, TR-181, TR-196v2
  • Active Users: up to 64 users
  • VoLTE & ViLTE

Security

  • Networking: IPSec Tunnel
  • OTA: LTE SNOW/AES Encryption Engines
  • Secure Boot: Qualcomm TPM

Mobility

  • Small to Macro: Intra-LTE Hand-out (over S1/X2), Inter-RAT; Hand-out to UMTS or GSM
  • Small to Small: Intra-LTE Handover, Secure X2 Handover w/o SecGW
  • Macro to Small: Intra-LTE Hand-in, Inter-RAT Hand-in from UMTS or GSM

Physical

  • Dimensions (W/H/D; mm): 220 x 203 x 38
  • Power Consumption: < 24W
  • LED: Power, Status, Service
  • I/O Port: 1 x WAN & 1 x LAN GE RJ-45 Ports
  • Operation Temperature: 0º C – 40º C
  • Installation: Stand/Wall Mount
