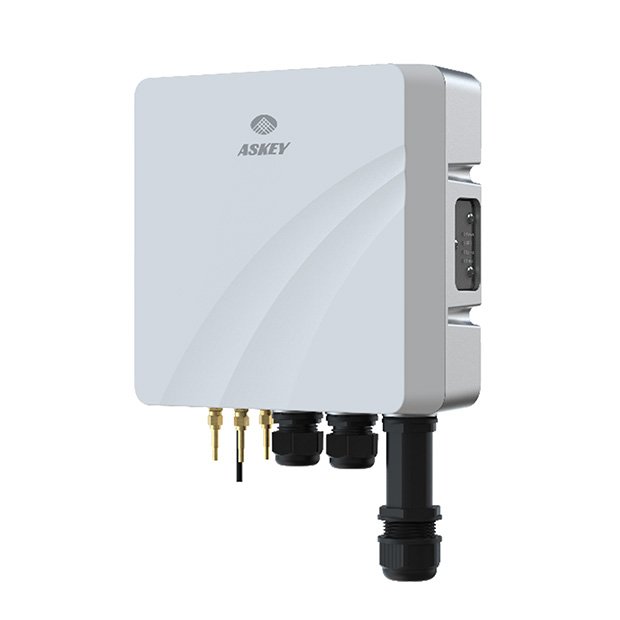

5G Sub-6 Small Cell

多合一 5G NR gNB 小基站解決方案，可支援多個 Sub-6 GHz 頻段，適用於室內和室外部署
亞旭 SCU2140 是款一體化 5G NR 小基站解決方案，專為實現無縫連接網路而設計。該設備支援多個 Sub-6 GHz 頻段，適用於室內外部署，具有高靈活性。其低功耗、精巧設計和輕量化結構確保快速簡便的安裝，輕鬆實現網路連接。

SCU2140 配備直觀網頁的圖形化使用者介面（GUI）軟體，可快速完成配置。同時採用亞旭的全面設備管理平臺（AMP）簡化了無線接入網（RAN）網路管理，可將 AMP 部署在雲端或本地環境中，集中管理所有亞旭小基站。

小基站解決方案與 AMP 相結合，協助企業輕鬆部署 5G 專有網路，不僅打破使用障礙，全然釋放 5G 潛力，並且提升運營效率。SCU2140 使運營商和企業顯著提升 5G 覆蓋範圍和網路容量，是製造、倉儲、物流、活動場地、採礦、港口和交通等行業 5G 專網的理想選擇。

General

Band:
N48/N77/N78/N79
Bandwidth: N48: 20/30/40MHz
N77: 40/50/60/70/80/90/100MHz
N78: 20/30/40/50/60/70/80/90/100MHz
N79: 100MHz
TX Power (per port): N48: EIRP <30dBm N77/N78/N79: 0 ~ 24dBm
EIRP: N48: EIRP <30dBm N77/N78/N79: (27+antenna gain) dBm
5G Antenna: 2x2 internal directional Peak Gain: N78 11dBi
N77/N79 12dBi
External Antenna Connector: 2 SMA for 5G antenna
1 SMA for GPS antenna
LED: 4 LED: Power/Service/Status/GPS
Backhaul: 1G WAN/1G SFP
Power Supply: DC 48V/POE++ (support 802.3at/bt)
Power Consumption: <35 W
Active Users: 32
DL/UL Data Rates: @DL 2layer UL 2layer 256QAM
DDDSU: 750Mbps/200Mbps
(DDDSU@n48/40MHz: 260Mbps/75Mbps)
DSUUU: 330Mbps/600Mbps
(DSUUU@n48/40MHz: 120Mbps/240Mbps)
DDDSU+DDSUU (7:3): 640Mbps/310Mbps
4:4 Semi-Synchronous TDD1: 480Mbps/432Mbps
7:2 Synchronous TDD: 765Mbps/216Mbps
2:6 Semi-Synchronous TDD3: 320Mbps/648Mbps
3:5 Semi-Synchronous TDD2: 380Mbps/540Mbps
Modulation: 256QAM DL/UL
Coverage: LOS 150m ~ 200m for common usage (directional antenna)
Installation: Wall/Pole mount
IP Grade: IP65
Timing Synchronization: GPS/GLONASS/Galileo/PTP 1588V2

Highly Optimized and Integrated with Askey AMP

Zero-Touch Provisioning
Call Performance KPI Tracking
Cell Health Monitoring;
Alarm Collection and Alerting Notification
Active User Monitoring
Schedulable Operations and Software Upgrade
Diagnostic and Troubleshooting Traces
SON/RRM Metrics Collection and Energy Management
Telemetric Exporter for AI

Dimensions

200 x 200 x 85 (WxHxD, mm)

Weight

<3 kgs

Operations and Maintenance

IPv4/IPv6
Local/Remote WebGUI Management
TR069
Fault Management
Configuration Management
Performance Management
Security Management
Software Upgrade

Environmental

Operating Temperature: -22°F to 131°F / -30℃ ~ 55℃
Operating Humidity: 90% maximum, non-condensing
Surge Suppression:

Network interface: 1KV
Power interface: 6KV

Basic Features

SA Network Architecture
3GPP Release 15
3GPP Release 16 Partial
Radio Link Adaptation
Integrity – NIA1/NIA2
Ciphering – NEA1/NEA2
PCI Confliction Detection
Close Loop Power Control-
DL/UL Resource Scheduling
Inter – RAT Handover
Measurement Report
NG/Xn Handover
QOS 5Qi
DSCP Marking – Per 5Qi
VLAN

SKU

Model Name: NR xCell 46116A1F
SKU1: SCU2140-N77N78N48 (3.55 ~4 .2GHz)
Certification: FCC n77 (3.7 ~ 4.0GHz)
FCC/OnGo n48 (3.55 ~ 3.7GHz)
CE n77 (3.8 ~ 4.2GHz)
Model Name: NR xCell 46116B2F
SKU: SCU2140-N78 (3.3 ~ 3.8GHz)
Certification:
CE n78 (3.4 ~ 3.8GHz)
NCC (TBD)
Model Name: NR xCell 46116C1F
SKU: SCU2140-N79 (4.4 ~ 5.0GHz)
Certification:
NCC (TBD)
TELEC (TBD)
