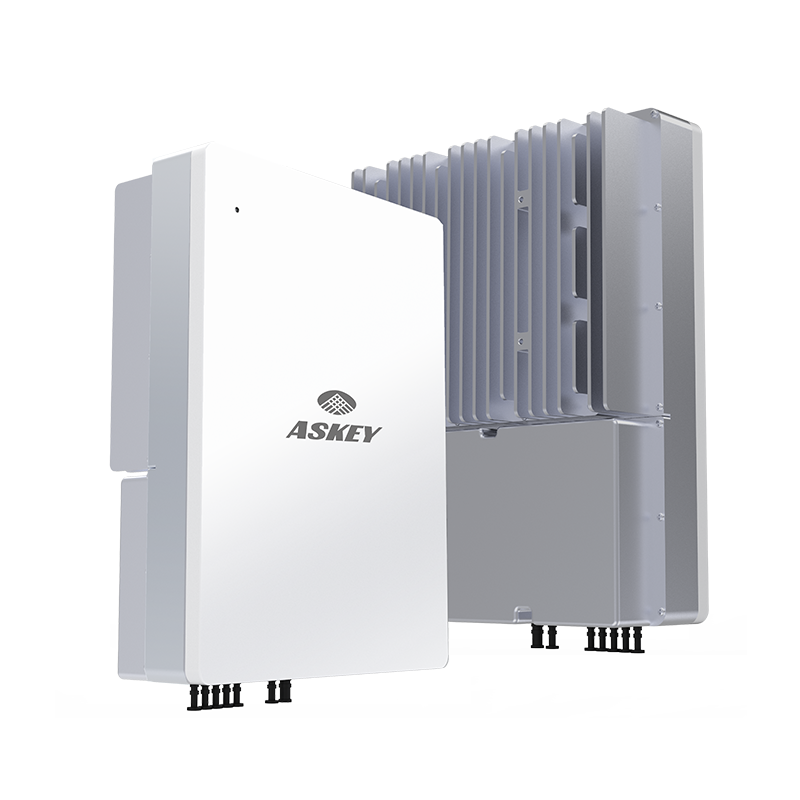

戶外 5G Sub-6 Small Cell

General

• Band: N78/N79
• Bandwidth:                                                                                                           N78: 20/30/40/50/60/70/80/90/100MHz
  N79: 100MHz
• TX Power (per port):  0 ~ 24dBm
• EIRP:  (27+antenna gain) dBm
• 5G Antenna: 2x2 internal Omni with peak gain 5dBi
• External Antenna Connector:                                                                            2 SMA for 5G antenna
  1 SMA for GPS antenna
• LED: 1 LED
• Backhaul: 2.5G WAN/10G SFP+
• Power Supply: AC90~264V
• Power Consumption: <60 W
• Active Users: 64
• DL/UL Data Rates: DDDSU: 750Mbps/200Mbps                                                                               DSUUU: 300Mbps/500Mbps
• Modulation: 256QAM DL/UL
• Coverage: LOS 70m ~ 100m for common usage
• Installation: Wall/Pole mount
• IP Grade: IP65
• Timing Synchronization: GPS/GLONASS/Galileo/PTP 1588V2

Highly Optimized and Integrated with Askey AMP

• Zero-Touch Provisioning
• Call Performance KPI Tracking
• Cell Health Monitoring;
• Alarm Collection and Alerting Notification
• Active User Monitoring
• Schedulable Operations and Software Upgrade
• Diagnostic and Troubleshooting Traces
• SON/RRM Metrics Collection and Energy Management
• Telemetric Exporter for AI

Dimensions

• 270 x 360 x 100 (WxHxD, mm)

Weight

• <9 kgs

Operations and Maintenance

• IPv4/IPv6
• Local/Remote WebGUI Management
• TR069
• Fault Management
• Configuration Management
• Performance Management
• Security Management
• Software Upgrade

Basic Features
