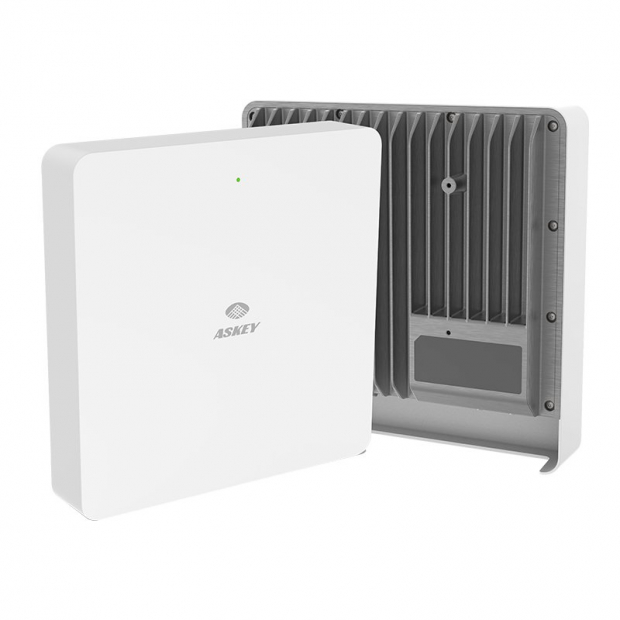

SCE2120
5G Sub-6 Indoor Small Cell
支援N48/N77/N78頻段和室内連接，提供優越的5G-NR Sub-6GHz室內網路覆蓋。
亞旭 SCE2120 NR xCell 46116A 和 NR xCell46156B 系列包括 4 個不同 SKU，內建 5G 基頻、無線電和天線，打破了安裝障礙，滿足企業連接需求，屬於運營商等級亞旭端到端解決方案的一部分，適用於智慧建築、智慧工廠、智慧醫院、智慧商場、智慧停車場等各種場景。
亞旭 SCE2120 NR xCell 46116A 和 NR xCell46156B 系列包括 4 個不同 SKU，內建 5G 基頻、無線電和天線，打破了安裝障礙，滿足企業連接需求，屬於運營商等級亞旭端到端解決方案的一部分，適用於智慧建築、智慧工廠、智慧醫院、智慧商場、智慧停車場等各種場景。
Specifications
General
- Band
N48/N77/N78 - Bandwidth
- N48: 20/30/40MHz
- N77: 40/50/60/70/80/90/100MHz
- N78: 20/30/40/50/60/70/80/90/100MHz
- Max. TX Power
- N48: EIRP < 30dBm
- N77/N78: 24dBm
- Antenna
Internal/External 2x2 MIMO - LED: 1 LED
- Backhaul: 10G SFP+/2.5G WAN
- Power Supply: DC 12V/POE++ (support 802.3bt)
- Power Consumption: <40 W
- Active Users: 16~32
- Data Rates
DDDSU: 750Mbps/200 Mbps - Coverage: LOS 70m for common usage
- Installation: Wall/Ceiling/Pole mount
- IP Grade: IP50
Dimensions
- 250 x 250 x 65 (WxHxD, mm)
Weight
- <2.5 kgs
Environmental
- Operating Temperature: -5℃ ~ 50℃
- Operating Humidity: 90% maximum, non-condensing
Operations and Maintenance
- Fault Management
- Configuration Management
- Performance Management
- Security Management
- Software Upgrade
Features
- SA Network Architecture
- 3GPP Release 15
- All-in-One Product
- NG/Xn Handover
- DL/UL Resource Scheduling
- Self-Organizing Networks
- Measurement Report
- WebGUI Management
- SAS-CBSD WINNF SAS-CBSD Interface
SKU
- Model Name: NR xCell 46116A
- SKU1: SCE2120 N77 (3.55~4.2GHz)
- SKU2: SCE2120 N48 (3.55~3.7GHz)
- SKU3: SCE2120 N78 (3.55~3.8GHz)
- Model Name: NR xCell 46156B
- SKU4: SCE2120 N78 (3.3~3.8GHz)
