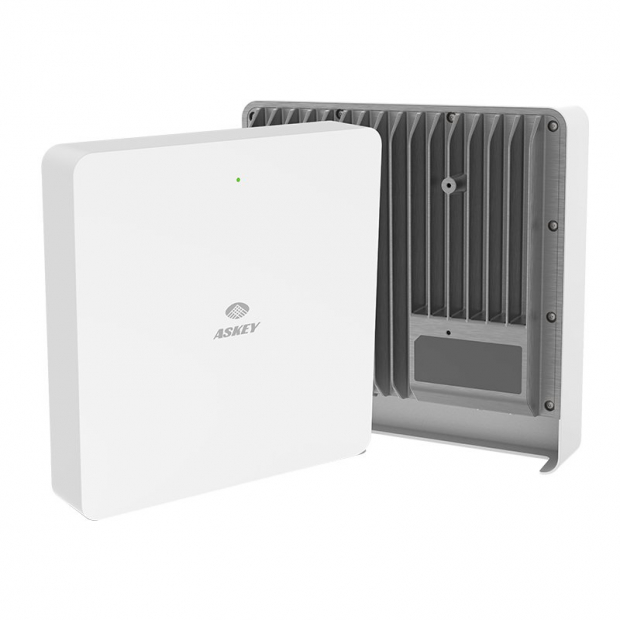

SCE2120
5G Sub-6 Small Cell
All-in-one Askey SCE2120 supports N48/N77/N78 band and the indoor connectivity, fully delivering a superior network
access experience.
This compact small cell has integrated baseband and radio. By providing a high-performance data service with wide
bandwidth and 2 x 2 MIMO, clients can deploy the 5G network with easy plug-and-play installation and backhaul.
The SCE2120 Small Cell is a part of the carrier-grade, end-to-end Askey Small Cell solution that is suitable for diversified
scenarios, such as elevators, factories, hospitals, underground parking, shopping malls, smart buildings and more.
access experience.
This compact small cell has integrated baseband and radio. By providing a high-performance data service with wide
bandwidth and 2 x 2 MIMO, clients can deploy the 5G network with easy plug-and-play installation and backhaul.
The SCE2120 Small Cell is a part of the carrier-grade, end-to-end Askey Small Cell solution that is suitable for diversified
scenarios, such as elevators, factories, hospitals, underground parking, shopping malls, smart buildings and more.
Specifications
General
- Band
N48 (3.55~3.7GHz) - N77 (3.55~4.2GHz)
- N78 (3.55~3.8GHz)
- Bandwidth
N48: 20/30/40MHz - N77: 40/50/60/70/80/90/100MHz
- N78: 20/30/40/50/60/70/80/90/100MHz
- Max. TX Power
N48: EIRP < 30dBm - N77/N78: 24dBm
- Antenna
Internal/External 2x2 MIMO - LED: 1 LED
- Backhaul: 2.5G WAN/10G SFP+
- Power Supply: DC 12V/POE++
- Power Consumption: <40 W
- Active Users: 16~32
- Data Rates: 700Mbps/100 Mbps
- Installation: Wall/Ceiling mount
- IP Grade: IP50
Dimensions
- 250 x 250 x 65 (WxHxD, mm)
Weight
- <2.5 kgs
Environmental
- Operating Temperature: -5℃ ~ 50℃
- Operating Humidity: 90% maximum, non-condensing
Operations and Maintenance
- Fault Management
- Configuration Management
- Performance Management
- Security Management
- Software Upgrade
Features
- SA Network Architecture
- 3GPP Release 15
- DL/UL Resource Scheduling
- Self-Organizing Networks
- All-in-One Product
- NG/Xn Handover
- Measurement Report
- WebGUI Management
- SAS-CBSD WINNF SAS-CBSD Interface
