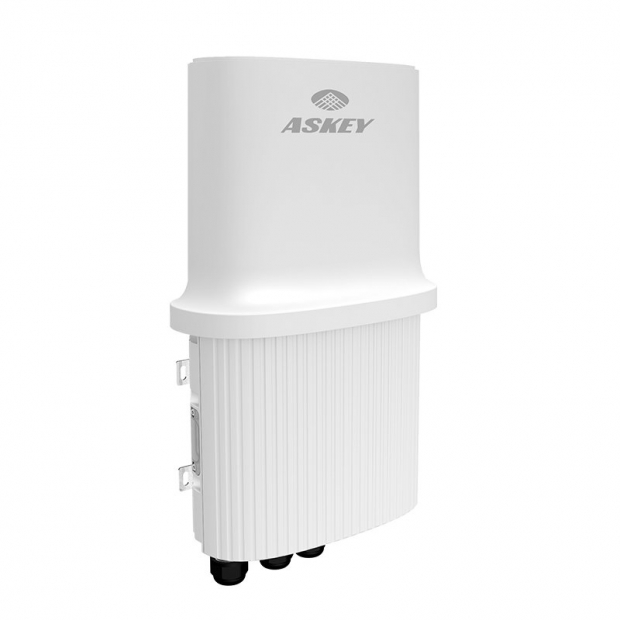

EAO2522P
戶外5G Sub6 無線基地台
配備MU-MIMO的同步雙頻WiFi 6 AP，可搭配無線5G Sub6或SFP+ 和Ethernet 多種WAN連接方式。
EAO2522P是一款專為抵禦嚴峻環境的企業級戶外5G Sub6無線基地台。搭載WiFi 6並內建同步雙頻，支援上下行多個使用者多輸入輸出。EAO2522P提供2.4GHz和5GHz頻段，最快可達1.8Gbps；Multi-WAN 連接支援超高速 5G Sub6 移動寬頻下載速率更達2Gbps。SFP+ 光纖寬頻充分利用 WiFi 6傳輸，無論是智慧城市、智慧交通、大型校園和公共場域的 WiFi 部署皆可完美應對。EAO2522P在乙太網路，光纖和 5G WAN的彈性設定可互為備援機制，確保訊號持續穩定連接。上傳乙太網路可與 PoE++（乙太網供電）支援相結合，不需額外的電源線，滿足使用者多元的建置需求。
EAO2522P是一款專為抵禦嚴峻環境的企業級戶外5G Sub6無線基地台。搭載WiFi 6並內建同步雙頻，支援上下行多個使用者多輸入輸出。EAO2522P提供2.4GHz和5GHz頻段，最快可達1.8Gbps；Multi-WAN 連接支援超高速 5G Sub6 移動寬頻下載速率更達2Gbps。SFP+ 光纖寬頻充分利用 WiFi 6傳輸，無論是智慧城市、智慧交通、大型校園和公共場域的 WiFi 部署皆可完美應對。EAO2522P在乙太網路，光纖和 5G WAN的彈性設定可互為備援機制，確保訊號持續穩定連接。上傳乙太網路可與 PoE++（乙太網供電）支援相結合，不需額外的電源線，滿足使用者多元的建置需求。
HIGHLIGHTS
- Dual-Band Dual-Concurrent 2.4GHz and 5GHz
- Support AP and Router modes
- Standalone or managed by TR069 centralized cloud WiFi management
- 5G Sub6 for up to 2Gbps UL and DL high-speed mobile broadband*
- SFP+ slot for gigabit fiber backhaul
- Pole and wall mountable IP67 weatherproof,
- All weather -40°C to 70°C
- IEEE 802.3bt PoE++ power input
Specifications
Physical
- CPU: Qualcomm Platform
- Dimension: 367 x 238 x 122 (mm, H x W x D)
- Interface:
GE1 WAN: 1 x 100/1000Base-T Ethernet, RJ-45 with 802.3bt PoE++
GE2 LAN: 1 x 100/1000Base-T Ethernet, RJ-45
1 x SFP+ slot
1 x nano SIM slot - LED Indicator: Single LED (RGB)
- Power Consumption: 18 Watt (WiFi only), 26 Watt (WiFi+5G NR)
- Environmental Condition:
Operating Temperature: -40°C to 70°C
Operating Humidity: 10% to 95% non-condensing
Ingress Protection: Water/Dust protection rated IP67 - Antenna Type:
2 x internal single-band 2.4G WiFi antenna
2 x internal single-band 5G WiFi antenna
6 x internal 5G NR antenna (including GPS)* - Mounting: Pole and wall mountable
WiFi
- Standard:
2.4 GHz: 802.11b/g/n/ax
5 GHz: 802.11a/n/ac/ax - Radio Chain: 2 x 2
- Spatial Stream: 2
- Performance:
2.4 GHz: up to 573.5Mbps phy rate
5 GHz: up to 1201Mbps phy rate - Maximum Transmit Power:
2.4 GHz: Up to 27dBm * (combined power)
5 GHz: Up to 26dBm * (combined power) - Minimum Receiver Sensitivity:
2.4 GHz 802.11n(HT20): -91dBm @ MCS0; -71dBm@MCS15
2.4 GHz 802.11n(HT40): -88.5dBm @ MCS0; -70dBm@MCS15
5 GHz 802.11ac(VHT40): -86.5dBm @ MCS0NSS1; -61dBm@MCS9NSS2
5 GHz 802.11ac(VHT80): -82dBm @ MCS0NSS1; -60dBm@MCS9NSS2 - Max Number of Client: Up to 128 per radio
- ESSID: Up to 4 per radio
LTE/5G NR ( EMEA )*
- Cellular Standard:
- 5G Sub6 FDD: n1, n3, n5, n7, n8, n20, n25, n28, n66
- 5G Sub6 TDD: n38, n40, n41, n48, n77, n78, n79
- LTE: B1, B2, B3, B5, B7, B8, B11, B18, B19, B20, B21, B25, B26, B28, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66
- 3G (HSPA+, WCDMA): B1, B2, B5, B8
- GNSS: GPS/QZSS, Glonass, Galileo, BeiDou
- Data Rate:
5G Sub6:
- > 2 Gbps (DL)
- DL 4x4 MIMO (bands > 1GHz)
- DL 2x2 MIMO (bands < 1GHz)
- UL 2*2 MIMO (n41/n77/n78/n79)
LTE:
- UL Cat 18: 2CC intra-band contiguous and 2CC Inter-band, 256QAM
- DL Cat 20: up to 7CC @ 20 Layers in 5 Bands
- DL 4x4 MIMO (bands > 1GHz)
- DL 2x2 MIMO (bands < 1GHz) - Region: EMEA/APAC/Taiwan
