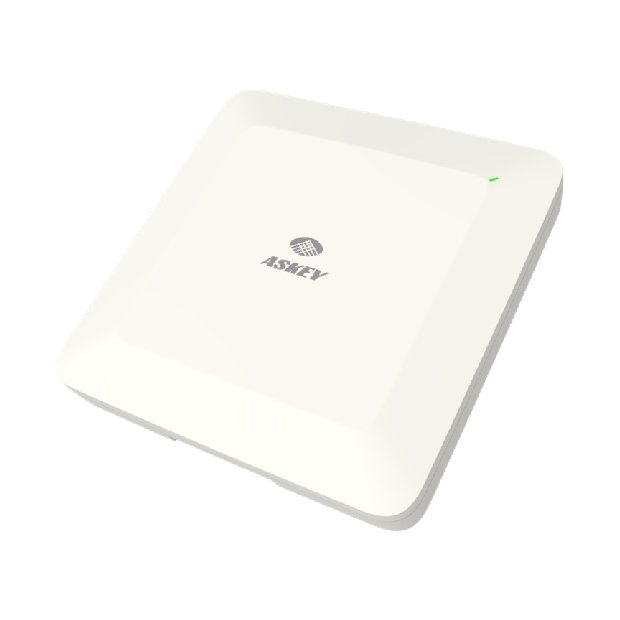

EAI2308P
Indoor Enterprise AP
包含無線資源管理功能的雙頻4 x 4 Wi-Fi 6企業級AP
EAI2308P提供雙頻雙路4 x 4 Wi-Fi 6 (802.1ax)，並為RRM專用掃描Wi-Fi無線電，優化整個部署的通道選擇和發射功率。每個AP都配有內置AP控制器功能，能夠控制同一組中的多個AP，並且AP控制器會自動指定一個AP作為其備份，實現不間斷聯網，降低IT成本和協作效率架構。EAI2308P滿足企業的VLAN應用、WPA2/WPA3和QoS，適用於需要全面Wi-Fi覆蓋的辦公室、大型商場、工廠，是室內接入點的理想解決方案。
EAI2308P接入點可將所有統計資料傳送到雲管理，亞旭雲管理軟體通過一個簡單的Web介面，為單個或多個企業接入點群組提供服務，為應要求提供。該AP有多種安裝套件，支持T型導軌、天花板和牆壁安裝（DC12V或POE+），經濟、安裝靈活和可擴展性是亞旭室內企業級AP的額外優勢。
EAI2308P提供雙頻雙路4 x 4 Wi-Fi 6 (802.1ax)，並為RRM專用掃描Wi-Fi無線電，優化整個部署的通道選擇和發射功率。每個AP都配有內置AP控制器功能，能夠控制同一組中的多個AP，並且AP控制器會自動指定一個AP作為其備份，實現不間斷聯網，降低IT成本和協作效率架構。EAI2308P滿足企業的VLAN應用、WPA2/WPA3和QoS，適用於需要全面Wi-Fi覆蓋的辦公室、大型商場、工廠，是室內接入點的理想解決方案。
EAI2308P接入點可將所有統計資料傳送到雲管理，亞旭雲管理軟體通過一個簡單的Web介面，為單個或多個企業接入點群組提供服務，為應要求提供。該AP有多種安裝套件，支持T型導軌、天花板和牆壁安裝（DC12V或POE+），經濟、安裝靈活和可擴展性是亞旭室內企業級AP的額外優勢。
Specifications
Physical
- CPU: Qualcomm IPQ8072A quad A53 64bit @2.2Ghz
- DRAM: DDR4 DRAM : 1GB
- Flash: eMMC: 4GB
- Power Input:
DC input: 12V
PoE: 802.3at PD - Dimensions: 220 x 220 x 43 (W x L x H, mm)
- Weight: 1.25 kg
- Interfaces
1 x 1/2.5 Gbps Ethernet (PoE port)
1 x 1 Gbps Ethernet - LED Indicator: 1 x Multi-color LED
- Button: Reset to default
- Power Consumption: 21Watt (802.3at POE+ or DC in)
- Environmental Conditions:
Operating temperature: 0°C ~ 50°C
Operating humidity: 10% ~ 95% non-condensing
Storage temperature: -40°C ~ 80°C
Storage humidity: 5% ~ 95% non-condensing - AntennaType:
4 x integrated single band, 2.4~2.5 GHz omnidirectional antennas
4 x integrated single band, 5.1~5.8 GHz omnidirectional antennas
1 x internal dual band WiFi antenna - Mounting: T-rail, ceiling or wall mountable
Wi-Fi
- Standards:
2.4 Ghz 802.11b/g/n/ax
5 Ghz 802.11a/n/ac/ax - Supported Rates:
802.11ax: 4 ~ 2400 Mbps
802.11ac: 6.5 ~ 1732 Mbps
802.11n: 6.5 ~ 600 Mbps
802.11a: 6 ~ 54 Mbps
802.11g: 6 ~ 54 Mbps
802.11b: 1 ~ 11 Mbps - Radio Chains:
2.4 Ghz 4 x 4: 4
5 Ghz 4 x 4: 4 - Spatial Streams: 4 for both SU-MIMO & MU-MIMO
- Antenna:
2.4 Ghz up to 5 dBi
5 Ghz up to 4.5 dBi - Performance:
2.4 Ghz : 1100 Mbps
5 Ghz : 2400 Mbps - Maximum Transmit Power:
2.4 GHz: up to 27 dBm *1 (combined power)
5 GHz: up to 28 dBm *1 (combined power) - Minimum Receiver Sensitivity:
2.4 Ghz HT20/VHT20/HE20: -93 dBm @MCS0
2.4 Ghz HT40/VHT40/HE40: -94 dBm @MCS0
5 Ghz HT20/VHT20: -95 dBm @ MCS0
5 Ghz VHT40/HE40: -93 dBm @ MCS0
5 Ghz VHT80/HE80: -89 dBm @ MCS0 - Max Number of Clients: Up to 128 per radio, 256 per AP
- ESSIDs: Up to 4 per radio
Software Features
- IP and VLAN:
DHCP server/relay
Multiple SSIDs and VLAN mapping - Wi-Fi:
WMM queues priority
Rate limitation per SSID
Access list
Client Authentication Protocols
Interwork with external RADIUS Server
WPA2/WPA3 enterprise/personal
Hotspot2.0
Beamforming
Airtime Fairness
Client Isolation - Radio Resource Management:
Automatic channel allocation
Automatic Power Control
Coverage Hole Detection
Load Balancing
Fast Roaming
Band Steering - Management:
Multi-tenants
Grouping and profiles
Mass Provisioning and FOTA
Account management
Zero touch deployment - Monitoring:
AP, Clients Monitoring
Rogue AP detection/reporting
Visualization & report for AP
Location Service and Network Map
Data monitoring and notification
System Performance Monitoring
Logs monitoring
Client statistics and detection
