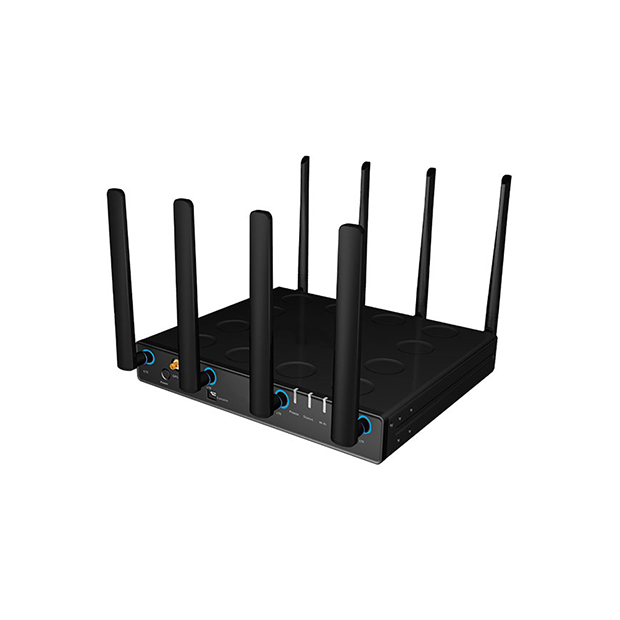

LTE + Wi-Fi 6 Dual-Band Enterprise Indoor Router

Physical

• CPU: Qualcomm IPQ8072A quad A53 64bit @2.2Ghz
• DRAM: DDR4 DRAM - 1GB
• Flash: eMMC - 8GB
• Dimensions: 282 mm (W) x 237 mm (L) x 43mm (H) (11inch wide, 1U height)
• Interfaces:
  WAN: 1 x 100/1000/2500 Base-T Ethernet
  LAN: 4 x 100/1000Base-T Ethernet, LAN4
  with POE
  1 x USB3.0
  1 x RJ45
  1 x Micro-USB
  1 x Nano SIM slot
  9 x SMA connector for antenna
• Battery: 1 x 2900mAh x 7.2V removable Li-ion Battery Pack.
• LED Indicator: 4 x LED: Power, Status, Wi-Fi, LTE
• Button: Power/WPS/Reset to Default
• Antenna type:
  4 x external SMA dual-band Wi-Fi antenna
  4 x external SMA LTE antenna
  1 x external GNSS antenna
• Mounting: Rack and wall mountable

Wi-Fi

• Standards: 2.4Ghz 802.11b/g/n/ax 5Ghz 802.11a/n/ac/ax
• Radio Chains: 4 x 4 : 4
• Spatial Streams: 4 for both SU-MIMO & MU-MIMO
• Antenna: Up to 4.5dBi
• Performance: 2.4Ghz: 1100 Mbps,
  5Ghz: 2400 Mbps
  Max Number of Clients: Up to 160 per radio
• ESSIDs: Up to 8 per radio

LTE

• Radio Chains: 4 x 4 : 4
• Spatial Streams: 4 for both SU-MIMO & MU-MIMO
• Antenna: Up to 4.5dBi
• Performance: 2.4Ghz: 1100 Mbps,
  5Ghz: 2400 Mbps
  Max Number of Clients: Up to 160 per radio
• ESSIDs: Up to 8 per radio
• LTE Standard: Cat.18 Qualcomm SDX20
• LTE Bands:
  LTE FDD: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29(DL), 30, 32, 66, 71
  LTE TDD: 38, 39, 40, 41, 42, 43, 46(DL), 48
  HSPA+: 1, 2, 4, 5, 8, 9, 19
• Spatial Streams: 4 x 4 MIMO Downlink
• Performance: DL - 1200Mbps; UL - 150Mbps
• GNSS: GPS, GLONASS, Galileo
