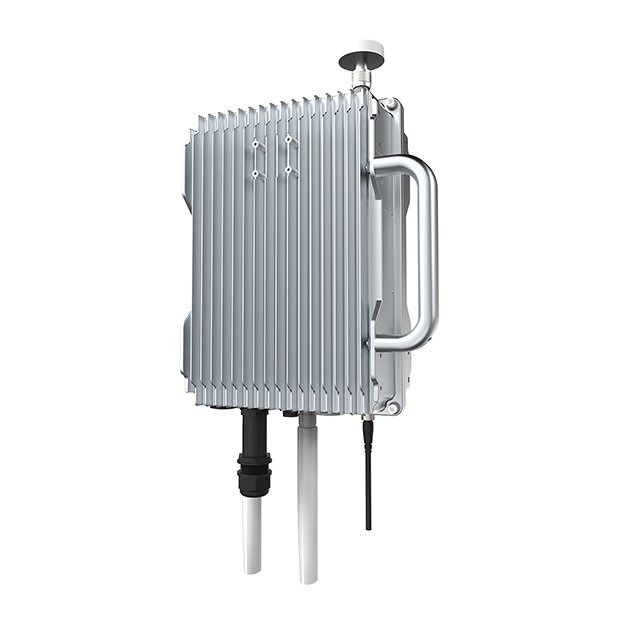

戶外 5G Sub-6 Small Cell

General

• Band: N78
• Bandwidth: 100MHz
• TX Power (per port):  10 ~ 37dBm
• EIRP: (40+antenna gain) dBm
• 5G Antenna: 2x2 external Omni with peak gain 5dBi
• External Antenna Connector: 2 N-type for 5G antenna
• LED: 1 LED
• Backhaul: 2.5G WAN/10G SFP+
• Power Supply: AC90 ~ 264V
• Power Consumption: <100 W
• Active Users: 64
• DL/UL Data Rates:DDDSU: 750Mbps/200Mbps                                                                              DSUU: 330Mbps/500Mbps                                                                                  DDDSU+DDSUU (7:3): 640Mbps/310Mbps
• Modulation: 256QAM DL/UL
• Coverage: LOS 500m ~ 1km for common usage (directional antenna)
• Installation: Wall/Pole mount
• IP Grade: IP66
• Timing Synchronization: GPS/GLONASS/Galileo/PTP 1588V2

Highly Optimized and Integrated with Askey AMP

• Zero-Touch Provisioning
• Call Performance KPI Tracking
• Cell Health Monitoring;
• Alarm Collection and Alerting Notification
• Active User Monitoring
• Schedulable Operations and Software Upgrade
• Diagnostic and Troubleshooting Traces
• SON/RRM Metrics Collection and Energy Management
• Telemetric Exporter for AI

Dimensions

• 231 x 321 x 135 (WxHxD, mm)

Weight

• <10 kgs

Operations and Maintenance

• IPv4/IPv6
• Local/Remote WebGUI Management
• TR069
• Fault Management
• Configuration Management
• Performance Management
• Security Management
• Software Upgrade

Basic Features
