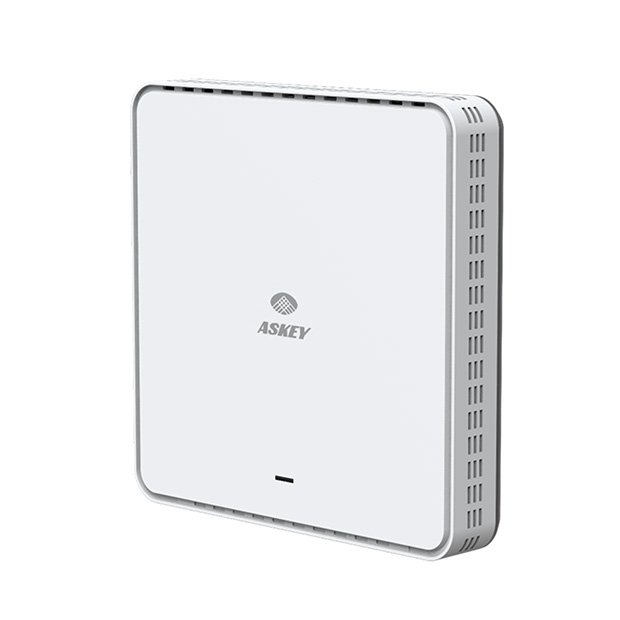

5G Sub-6 Small Cell

General

• Band: B3/N78
• Bandwidth:                                                                                                        B3: 5/10/15/20MHz
  N78: 20/30/40/50/60/70/80/90/100MHz
• TX Power (per port):                                                                                        B3: 0~21dBm
  N78: 0~24dBm
• EIRP:                                                                                                                  B3: (24+antenna gain) dBm
  N78: (27+antenna gain) dBm
• 4G/5G Antenna: 2x2 internal Omni with peak gain 5dBi
• External Antenna Connector:                                                                            2 SMA for 4G antenna
  2 SMA for 5G antenna
  1 SMA for GPS antenna
• LED: 1 LED
• Backhaul: 1G RJ45 (link to xDSL/xPON)
• Power Supply: DC12V
• Power Consumption: <45 W
• Active Users:                                                                                                    4G: 32
  5G: 32
• DL/UL Data Rates:
  4G: 150Mbps/50Mbps                                                                                    5G: DDDSU: 750Mbps/200Mbps
         DSUUU: 300Mbps/600Mbps
• Modulation: 256QAM DL/UL
• Coverage: LOS 70m ~ 100m for common usage
• Installation: Wall/Celling/Pole mount
• Timing Synchronization: GPS/GLONASS/Galileo

Highly Optimized and Integrated with Askey AMP

• Zero-Touch Provisioning
• Call Performance KPI Tracking
• Cell Health Monitoring
• Alarm Collection and Alerting Notification
• Active User Monitoring
• Schedulable Operations and Software Upgrade
• Diagnostic and Troubleshooting Traces
• SON/RRM Metrics Collection and Energy Management
• Telemetric Exporter for AI

Dimensions

• 265 x 263 x 66 (WxHxD, mm)

Weight

• <3 kgs

Operations and Maintenance

• IPv4/IPv6
• Local/Remote WebGUI Management
• TR069
• Fault Management
• Configuration Management
• Performance Management
• Security Management
• Software Upgrade
