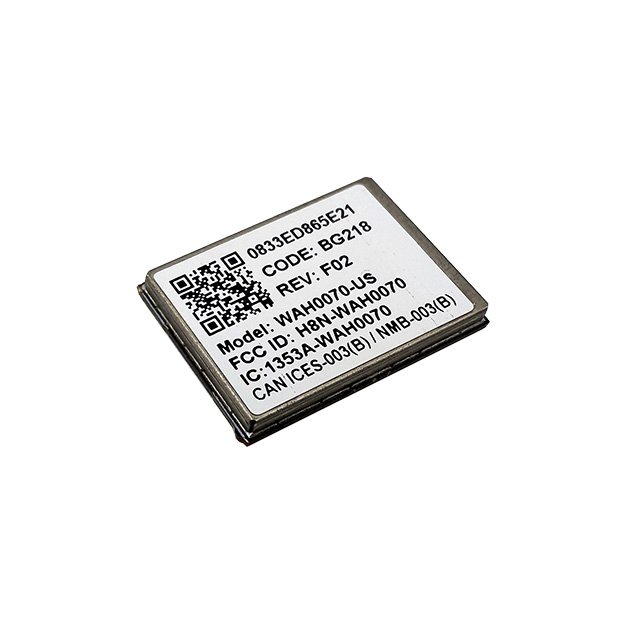

WAH0070
Wi-Fi HaLow Module
輕鬆實現長距離傳輸
Wi-Fi HaLow, 802.11ah, 是Wi-Fi聯盟針對物聯網,提出低功耗、長距離的無線通訊技術。採用Wi-Fi標準,易與Wi-Fi網路結合,也確保Wi-Fi級的安全性。
亞旭WAH0070模組採用LGA尺寸,內建Newracom NRC7394晶片,待機功耗低、傳輸範圍長和操作系統容易整合,是AP或router和終端設備內建的理想選擇。
Wi-Fi HaLow, 802.11ah, 是Wi-Fi聯盟針對物聯網,提出低功耗、長距離的無線通訊技術。採用Wi-Fi標準,易與Wi-Fi網路結合,也確保Wi-Fi級的安全性。
亞旭WAH0070模組採用LGA尺寸,內建Newracom NRC7394晶片,待機功耗低、傳輸範圍長和操作系統容易整合,是AP或router和終端設備內建的理想選擇。
詳細規格
Feature
- Newracom NRC7394 chipset
- Full IEEE 802.11ah compatibility with enhanced performance
- 1/2/4 MHz channel bandwidth, up to 15Mbps data rate
- WPA2/WPA3/WPS support
- AP and STA, 802.11s mesh network support
- Support 921~927MHz (JP version), 902~928MHz (US version)
- Support Host and Standalone modes
- TELEC/FCC certification completed
Main Interface
- UART and SPI support for host interface
Serial Flash (2Mbyte, optional 4Mbyte) for XI
Peripherals
- GPIO, AUXADC, I2C, SPI and UART
Dimension
- LGA form factor
- 18 x13.5 x 2.1 (mm, WxLxH)
Environmental
- Temperature: -40 to 85℃
- Humidity : 20% to 90% RH
