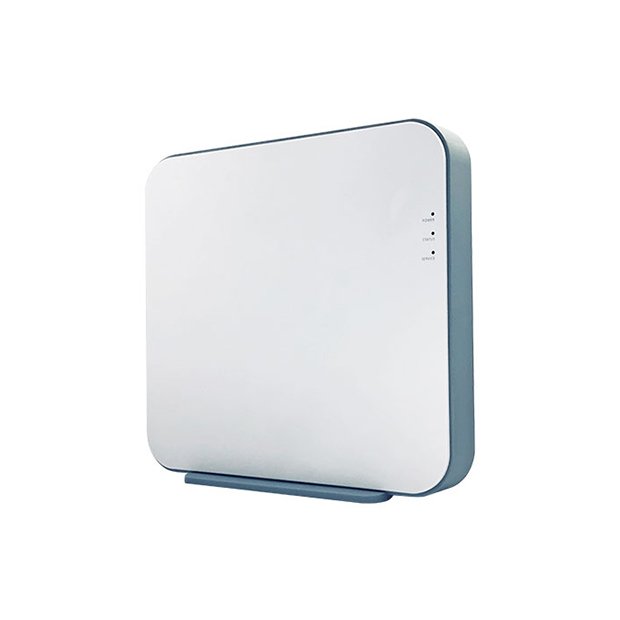

Dual LTE Small Cell
SFE306X

Dual LTE Small Cell

The carrier aggregation feature in the SFE306X will deliver a high rate of speed for the users to access the Internet.
For the Mobile Network Operator, this Small Cell not only extends the coverage, increases the capacity, but also offloads heavy data traffic occurring at the core network.
Furthermore, the coverage is improved by filling gaps with Small Cells in cost-effective power adaptation to eliminate losses of in-building signal penetration. The capacity is improved by reduction in the number of phones originally having to use macro cells. The result is an evident improvement in user experience.
Share

The carrier aggregation feature in the SFE306X will deliver a high rate of speed for the users to access the Internet.

Specifications

Small Cell Mode

  • Band: LTE FDD B1/B3 or B1/B7
  • Carrier Aggregation: 2 x CA
  • Antenna: 2 x Internal Omni Antennas
  • Diversity: 2T x 2R MIMO
  • LTE-Uu: 3GPP R10
  • S1: 3GPP R11
  • X2: 3GPP R11
  • O&M: BF TR-069, TR-181, TR-196v2
  • Active Users: up to 64 users
  • VoLTE & ViLTE

Security

  • Networking: IPSec Tunnel
  • OTA: LTE SNOW/AES Encryption Engines
  • Secure Boot: Qualcomm TPM

Mobility

  • Small to Macro: Intra-LTE Hand-out (over S1/X2), Inter-RAT; Hand-out to UMTS or GSM
  • Small to Small: Intra-LTE Handover, Secure X2 Handover w/o SecGW
  • Macro to Small: Intra-LTE Hand-in, Inter-RAT Hand-in from UMTS or GSM

Physical

  • Dimensions (W/H/D; mm): 220 x 203 x 38
  • Power Consumption: < 24W
  • LED: Power, Status, Service
  • I/O Port: 1 x WAN & 1 x LAN GE RJ-45 Ports
  • Operation Temperature: 0º C – 40º C
  • Installation: Stand/Wall Mount
