SCU2140

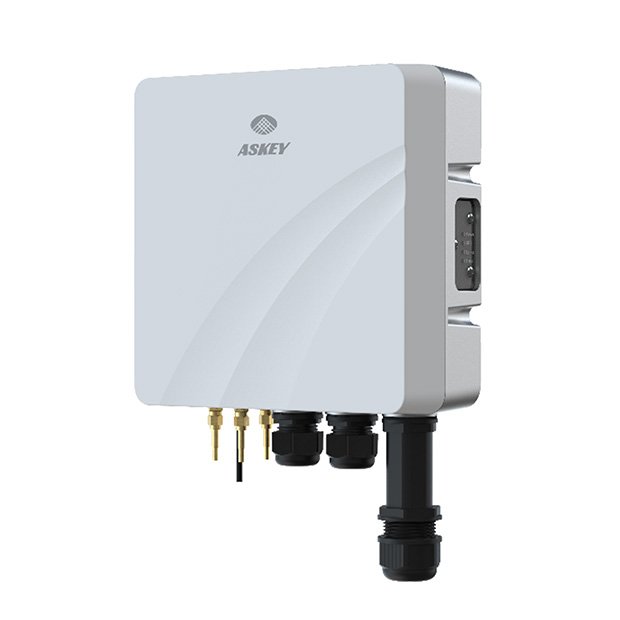

5G Sub-6 Small Cell
An advanced, all-in-one 5G NR gNB solution designed to support multiple Sub-6 GHz frequency bands for both indoor and outdoor deployments
The Askey SCU2140 is a cutting-edge, all-in-one 5G NR gNB solution designed for seamless connectivity. Supporting multiple Sub-6 GHz frequency bands, it's incredibly versatile for both indoor and outdoor deployments. Its low power consumption, compact size, and lightweight design ensure fast and effortless installation, getting you connected quicker.
Manage your network with ease! The SCU2140 comes with intuitive web-based GUI software for quick configuration. Plus, Askey's comprehensive Device Management Platform (AMP) simplifies RAN network management. Deploy AMP on a public cloud or on-premises to centrally manage all your Askey small cells, including the SCU2140.
Together, Askey's small cell solutions and AMP empower businesses to easily implement 5G private networks. Break down adoption barriers and unlock the full potential of 5G to enhance your operations. The SCU2140 helps operators and enterprises significantly boost 5G coverage and network capacity, making it the ideal choice for private 5G networks across industries like manufacturing, warehousing, logistics, event venues, mining, ports, and transportation.
The Askey SCU2140 is a cutting-edge, all-in-one 5G NR gNB solution designed for seamless connectivity. Supporting multiple Sub-6 GHz frequency bands, it's incredibly versatile for both indoor and outdoor deployments. Its low power consumption, compact size, and lightweight design ensure fast and effortless installation, getting you connected quicker.
Manage your network with ease! The SCU2140 comes with intuitive web-based GUI software for quick configuration. Plus, Askey's comprehensive Device Management Platform (AMP) simplifies RAN network management. Deploy AMP on a public cloud or on-premises to centrally manage all your Askey small cells, including the SCU2140.
Together, Askey's small cell solutions and AMP empower businesses to easily implement 5G private networks. Break down adoption barriers and unlock the full potential of 5G to enhance your operations. The SCU2140 helps operators and enterprises significantly boost 5G coverage and network capacity, making it the ideal choice for private 5G networks across industries like manufacturing, warehousing, logistics, event venues, mining, ports, and transportation.
Specifications
General
- Band:
N48/N77/N78/N79 - Bandwidth: N48: 20/30/40MHz
N77: 40/50/60/70/80/90/100MHz
N78: 20/30/40/50/60/70/80/90/100MHz
N79: 100MHz - TX Power (per port): N48: EIRP <30dBm N77/N78/N79: 0 ~ 24dBm
- EIRP: N48: EIRP <30dBm N77/N78/N79: (27+antenna gain) dBm
- 5G Antenna: 2x2 internal directional Peak Gain: N78 11dBi
N77/N79 12dBi - External Antenna Connector: 2 SMA for 5G antenna
1 SMA for GPS antenna - LED: 4 LED: Power/Service/Status/GPS
- Backhaul: 1G WAN/1G SFP
- Power Supply: DC 48V/POE++ (support 802.3at/bt)
- Power Consumption: <35 W
- Active Users: 32
- DL/UL Data Rates: @DL 2layer UL 2layer 256QAM
DDDSU: 750Mbps/200Mbps
(DDDSU@n48/40MHz: 260Mbps/75Mbps)
DSUUU: 330Mbps/600Mbps
(DSUUU@n48/40MHz: 120Mbps/240Mbps)
DDDSU+DDSUU (7:3): 640Mbps/310Mbps
4:4 Semi-Synchronous TDD1: 480Mbps/432Mbps
7:2 Synchronous TDD: 765Mbps/216Mbps
2:6 Semi-Synchronous TDD3: 320Mbps/648Mbps
3:5 Semi-Synchronous TDD2: 380Mbps/540Mbps - Modulation: 256QAM DL/UL
- Coverage: LOS 150m ~ 200m for common usage (directional antenna)
- Installation: Wall/Pole mount
- IP Grade: IP65
- Timing Synchronization: GPS/GLONASS/Galileo/PTP 1588V2
Highly Optimized and Integrated with Askey AMP
- Zero-Touch Provisioning
- Call Performance KPI Tracking
- Cell Health Monitoring;
- Alarm Collection and Alerting Notification
- Active User Monitoring
- Schedulable Operations and Software Upgrade
- Diagnostic and Troubleshooting Traces
- SON/RRM Metrics Collection and Energy Management
- Telemetric Exporter for AI
Dimensions
- 200 x 200 x 85 (WxHxD, mm)
Weight
- <3 kgs
Operations and Maintenance
- IPv4/IPv6
- Local/Remote WebGUI Management
- TR069
- Fault Management
- Configuration Management
- Performance Management
- Security Management
- Software Upgrade
Environmental
Operating Temperature: -22°F to 131°F / -30℃ ~ 55℃Operating Humidity: 90% maximum, non-condensing
Surge Suppression:
- Network interface: 1KV
- Power interface: 6KV
Basic Features
- SA Network Architecture
- 3GPP Release 15
- 3GPP Release 16 Partial
- Radio Link Adaptation
- Integrity – NIA1/NIA2
- Ciphering – NEA1/NEA2
- PCI Confliction Detection
- Close Loop Power Control-
- DL/UL Resource Scheduling
- Inter – RAT Handover
- Measurement Report
- NG/Xn Handover
- QOS 5Qi
- DSCP Marking – Per 5Qi
- VLAN
SKU
- Model Name: NR xCell 46116A1F
SKU1: SCU2140-N77N78N48 (3.55 ~ 4.2GHz)
Certification: FCC n77 (3.7 ~ 4.0GHz)
FCC/OnGo n48 (3.55 ~ 3.7GHz)
CE n77 (3.8 ~ 4.2GHz) - Model Name: NR xCell 46116B2F
SKU: SCU2140-N78 (3.3 ~3 .8GHz)
Certification:
CE n78 (3.4 ~ 3.8GHz)
NCC (TBD) - Model Name: NR xCell 46116C1F
SKU: SCU2140-N79 (4.4 ~ 5.0GHz)
Certification:
NCC (TBD)
TELEC (TBD)
Ordering Information
- Wall/Pole Mounting Kit
- Outdoor Kit (includes outdoor wall/pole mounting kit & PSU kit)
