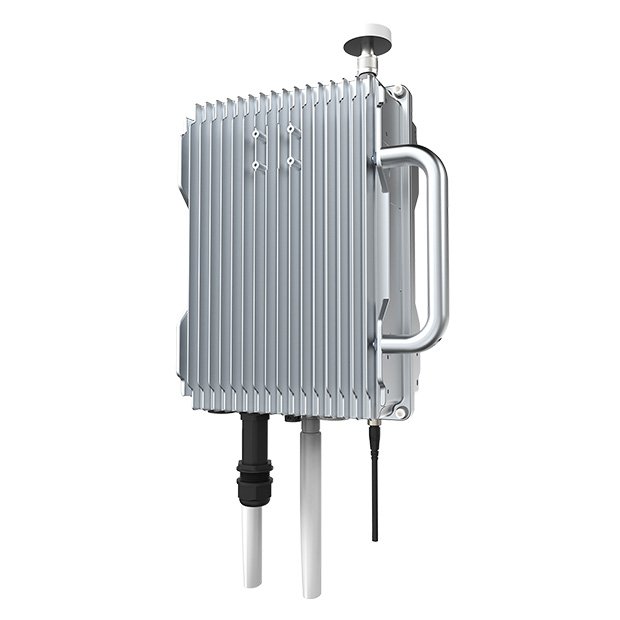

SCU2060
5G Sub-6 Outdoor Small Cell
Askey SCU2060 is an advanced, all-in-one 5G NR gNB solution designed for outdoor deployment, compliant with 3GPP Release 15 Time Division Duplex (TDD) technology.
With a transmission output of 5W per port, the SCU2060 supports Sub-6 GHz frequency bands and is deployed with external antennas. Its low power consumption, combined with a compact and lightweight enclosure, ensures quick and easy installation.
The SCU2060 is equipped with local web-based Graphical User Interface (GUI) software applications for easy configuration and management. In addition, Askey offers a robust, field-proven, all-in-one Device Management Service (EMS) with flexible deployment options either on a public cloud or on-premises, supporting the management of all Askey small cells such as the SCU2060.
The SCU2060 enables operators and verticals to enhance 5G coverage performance effectively and improve 5G network capacity. It also helps reduce the barriers to deploy 5G private network solutions for enterprise applications, particularly in industries, including manufacturing, warehousing, logistics, event venues, mining, and transportation management and operation.
With a transmission output of 5W per port, the SCU2060 supports Sub-6 GHz frequency bands and is deployed with external antennas. Its low power consumption, combined with a compact and lightweight enclosure, ensures quick and easy installation.
The SCU2060 is equipped with local web-based Graphical User Interface (GUI) software applications for easy configuration and management. In addition, Askey offers a robust, field-proven, all-in-one Device Management Service (EMS) with flexible deployment options either on a public cloud or on-premises, supporting the management of all Askey small cells such as the SCU2060.
The SCU2060 enables operators and verticals to enhance 5G coverage performance effectively and improve 5G network capacity. It also helps reduce the barriers to deploy 5G private network solutions for enterprise applications, particularly in industries, including manufacturing, warehousing, logistics, event venues, mining, and transportation management and operation.
Specifications
General
- Band:N79 (4.8 ~ 4.9GHz)
- Bandwidth: 100MHz
- Max. TX Power:5W (37dBm) per port
- EIRP
- 52dBm (Directional Antenna)
- 45dBm (Omni Antenna)
- Antenna:External 2x2 MIMO
- LED: 1 LED
- Backhaul: 2.5G WAN/10G SFP+
- Power Supply: AC 90 ~ 264V
- Power Consumption: < 100 W
- Active Users: 64
- Time Slot vs Data Rates
- DDDSU: 750Mbps/200Mbps
- DSUUU: 330Mbps/610Mbps
- DDDSU+DDSUU (7:3): 640Mbps/310Mbps
- 4:4 Semi-Synchronous TDD: 480Mbps/432Mbps
- 7:2 Synchronous TDD: 765Mbps/216Mbps
- 2:6 Semi-Synchronous TDD: 320Mbps/648Mbps
- 3:5 Semi-Synchronous TDD: 380Mbps/540Mbps
- Modulation 256QAM DL/UL
- Coverage
LOS 500m for common usage (Directional Antenna) - Installation: Wall/Pole mount
- IP Grade: IP66
- Timing Synchronization: GPS/PTP
Dimensions
- 321 x 231 x 135 (WxHxD, mm)
Weight
- <10 kgs
Environmental
- Operating Temperature: -40℃ ~ 55℃
- Operating Humidity: 90% maximum, non-condensing
Operations and Maintenance
- IPv4/IPv6
- Local/Remote WebGUI Management
- TR069/Netconf
- Fault Management
- Configuration Management
- Performance Management
- Security Management
- Software Upgrade
- KPI Counter
Features
- SA Network Architecture
- 3GPP Release 15
- 3GPP Release 16 Partial
- Radio Link Adaptation
- 64 Active Users
- Integrity – NIA1/NIA2
- Ciphering – NEA1/NEA2
- PCI confliction detection
- Close loop Power Control
- DL/UL Resource Scheduling
- Inter-RAT Handover
- Measurement Report
- NG/Xn Handover
- QOS 5Qi
- DSCP marking - Per 5QI
- VLAN
Ordering Information
- Model Name: NR xCell 60156CW
Certification: TELEC
- Model Name: SCU2060 N79
Certification: NCC
