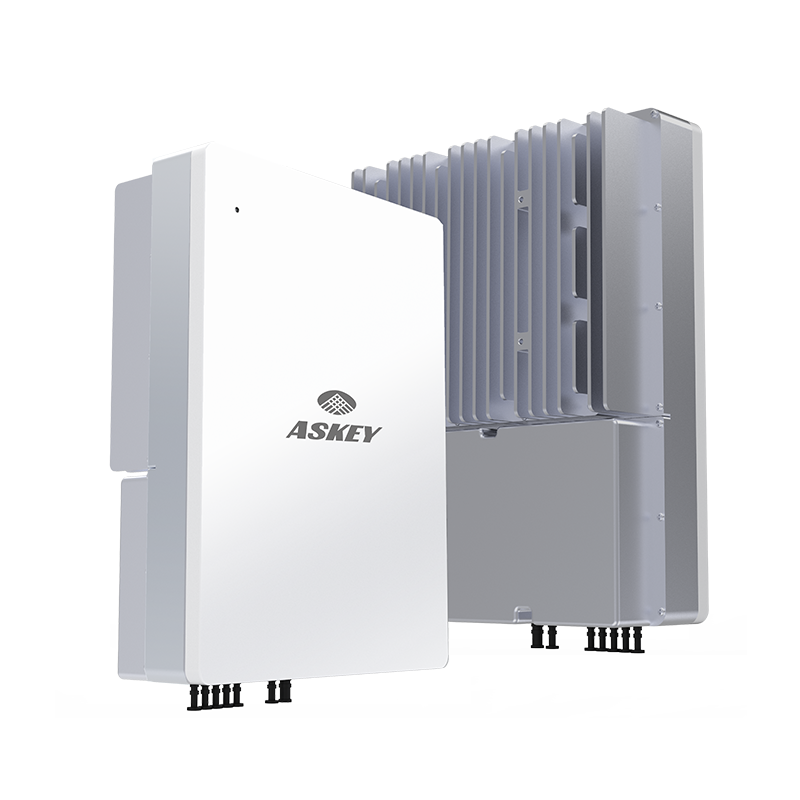

SCU2000

5G Sub-6 Outdoor Small Cell

Askey SCU2000 is a customer-driven small cell that fully supports enterprise-level outdoor coverage of 5G Sub-6GHz.

The family of Askey SCU2000 NR xCell 60156 series includes 2 different SKUs for SCU2000 N78 and N79, which meet the demand for enterprise-level connectivity. This super and compact small cell has integrated 5G baseband, radio and antenna into a single product, which helps break installation barriers. With the carrier-grade, end-to-end Askey Small Cell solutions, they solve the issues in various scenarios, such as smart buildings, factories, hospitals, shopping malls, elevators, underground parking etc.
Share

Specifications

General

  • Band
    N78/N79
  • Bandwidth
    • N78: 20/30/40/50/60/70/80/90/100MH
    • N79: 100MHz
  • Max. TX Power
    N78/N79: 24dBm
  • EIRP
    N78/N79: 31dBm
  • Antenna
    Internal/External 2x2 MIMO
  • LED: 1 LED
  • Backhaul: 2.5G WAN/10G SFP+
  • Power Supply: AC 90~264V
  • Power Consumption: <70 W
  • Active Users: 16~64
  • Data Rates
    DDDSU: 750Mbps/200Mbps
  • Coverage
    LOS 100m radius for common usage
  • Installation: Wall/Pole mount
  • IP Grade: IP65

Dimensions

  • 270 x 355 x 100 (WxHxD, mm)

Weight

  • <7 kgs

Environmental

  • Operating Temperature: -20℃ ~ 55℃
  • Operating Humidity: 90% maximum, non-condensing

Operations and Maintenance

  • Fault Management
  • Configuration Management
  • Performance Management
  • Security Management
  • Software Upgrade

Features

  • SA Network Architecture
  • 3GPP Release 15
  • Self Organizing Networks
  • DL/UL Resource Scheduling
  • Measurement Report
  • NG/Xn Handover
  • WebGUI Management

SKU

  • Model Name: NR xCell 60156B
    • SKU1: SCU2000 N78 (3.3~3.8GHz)
  • Model Name: NR xCell 60156C
    • SKU2: SCU2000 N79 (4.4~5.0GHz)
