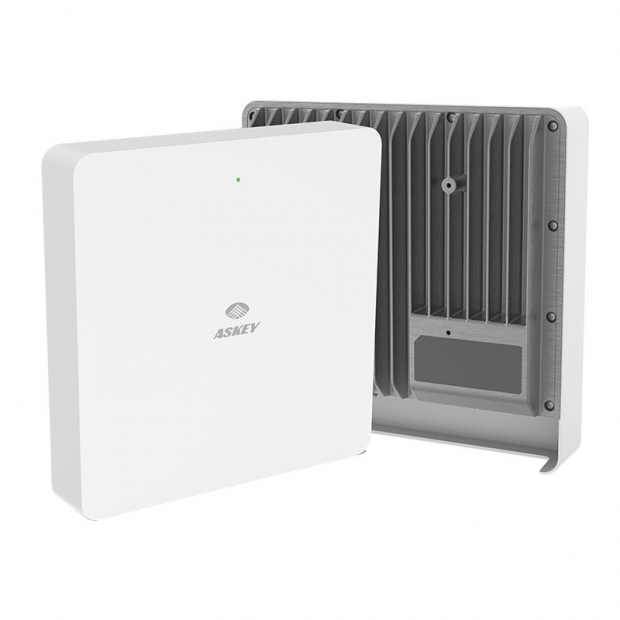

SCE2200
5G Sub-6 Indoor Small Cell
Meeting the requirement for enterprise-level N78/N79 band indoor connectivity, it is an ideal and powerful solution to deliver a superior network access experience.
Askey’s SCE2200 provides indoor coverage of 5G Sub-6. The family of NR xCell 80156 series includes 2 different SKUs for SCE2200 N78 and N79, which meet the critical demand for enterprise-level connectivity. By integrating 5G baseband, radio and antenna into a single product, it breaks installation barriers. With this carrier-grade Askey Small Cell end-to-end solutions, it is definitely suitable for various scenarios, such as smart buildings, factories, hospitals, shopping malls, elevators, underground parking etc.
Askey’s SCE2200 provides indoor coverage of 5G Sub-6. The family of NR xCell 80156 series includes 2 different SKUs for SCE2200 N78 and N79, which meet the critical demand for enterprise-level connectivity. By integrating 5G baseband, radio and antenna into a single product, it breaks installation barriers. With this carrier-grade Askey Small Cell end-to-end solutions, it is definitely suitable for various scenarios, such as smart buildings, factories, hospitals, shopping malls, elevators, underground parking etc.
Specifications
General
- Band: N78/N79
- Bandwidth: N78: 20/30/40/50/60/70/80/90/100MHz
N79: 100MHz - TX Power (per port): 0 ~ 24dBm
- EIRP: (27+antenna gain) dBm
- 5G Antenna: 2x2 internal Omni Peak Gain: N78: 6dBi N79: 7dBi
- External Antenna Connector: 2 SMA for 5G antenna
1 SMA for GPS antenna - LED: 1 LED
- Backhaul: 2.5G WAN/10G SFP+
- Power Supply: DC 12V/POE++ (support 802.3bt)
- Power Consumption: <50 W
- Active Users: 64
- DL/UL Data Rates: @DL 2layer UL 2layer 256QAM
DDDSU: 750Mbps/200Mbps
DSUU: 300Mbps/500Mbps - Modulation: 256QAM DL/UL
- Coverage: LOS 70m ~ 100m for common usage
- Installation: Wall/Ceiling/Pole mount
- IP Grade: IP50
- Timing Synchronization: GPS/GLONASS/Galileo/PTP 1588V2
Highly Optimized and Integrated with Askey AMP
- Zero-Touch Provisioning
- Call Performance KPI Tracking
- Cell Health Monitoring;
- Alarm Collection and Alerting Notification
- Active User Monitoring
- Schedulable Operations and Software Upgrade
- Diagnostic and Troubleshooting Traces
- SON/RRM Metrics Collection and Energy Management
- Telemetric Exporter for AI
Dimensions
- 250 x 250 x 65 (WxHxD, mm)
Weight
- <2.5 kgs
Operations and Maintenance
- IPv4/IPv6
- Local/Remote WebGUI Management
- TR069
- Fault Management
- Configuration Management
- Performance Management
- Security Management
- Software Upgrade
Environmental
Operating Temperature: 23°F to 113°F / -5℃ ~ 45℃Operating Humidity: 90% maximum, non-condensing
Basic Features
- SA Network Architecture
- 3GPP Release 15
- 3GPP Release 16 Partial
- Radio Link Adaptation
- Integrity – NIA1/NIA2
- Ciphering – NEA1/NEA2
- PCI Confliction Detection
- Close Loop Power Control-
- DL/UL Resource Scheduling
- Inter – RAT Handover
- Measurement Report
- NG/Xn Handover
- QOS 5Qi
- DSCP Marking – Per 5Qi
- VLAN
SKU
- Model Name: NR xCell 80156B
SKU1: SCE2200 N78 (3.3 ~ 3.8GHz)
Certification: CE/NCC - Model Name: NR xCell 80156C
SKU2: SCE2200 N79 (4.4 ~ 5.0GHz)
Certification: TELEC/NCC
Ordering Information
- Wall/Ceiling/Pole Mounting Kit
