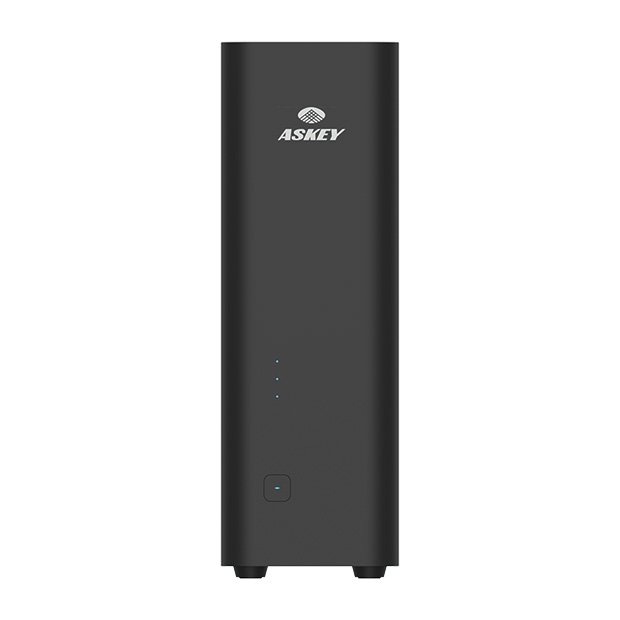

XGSPON Wi-Fi 7 Gateway

Ultimate internet speed for residential and business users.
It brings symmetric 10G internet throughput by XGSPON and delivers real-time data to users by Wi-Fi 7 or 10GE Ethernet LAN, providing zero latency 4K live streaming, online gaming, e-learning, or video conference and more.

Share

Perfectly Connect Devices around Your Home

EasyMesh and Matter technologies make smart home environment interoperability very easily. RTV7906VW can extend wireless signal to cover whole area and connect IoT devices to create a connected entertainment space with secured network.

Equipped with two FXS ports and DECT for voice service to connect existing telephones, it provides space saving by combining internet and telephony cables.

Specifications

Chipset and System

Chipset
- Airoha AN7581+
- MediaTek Eagle platform
Memory
- RAM: 1GB
- Flash: 512MB

Wi-Fi

Tri-band
- Wi-Fi 7 4x4 @2.4GHz (40MHz, 1376Mbps)
- Wi-Fi 7 4x4 @5GHz (160MHz, 5765Mbps)
- Wi-Fi 7 4x5 @6GHz (320MHz, 11530Mbps)
Antenna
- 2.4/5GHz dual band antenna x 4
- 6GHz single band antenna x 5
- DECT antenna x 2

Connectivity

1 port XGSPON (SPF+) or DSL
Ethernet
- 1 port 10Gb WAN
- 4 ports 1Gb LAN
2 ports FXS for VOIP
1 port USB3.0 type A
1 port DECT (CAT-iq 2.0)
IoT (BLE/Zigbee), Thread/Matter capable
EasyMesh capable (optional)
TR069/TR369 remote management

Dimension

136 x 136 x 240 (WxDxH, mm)

Environmental

Operating Temperature: 0°C~40°C
