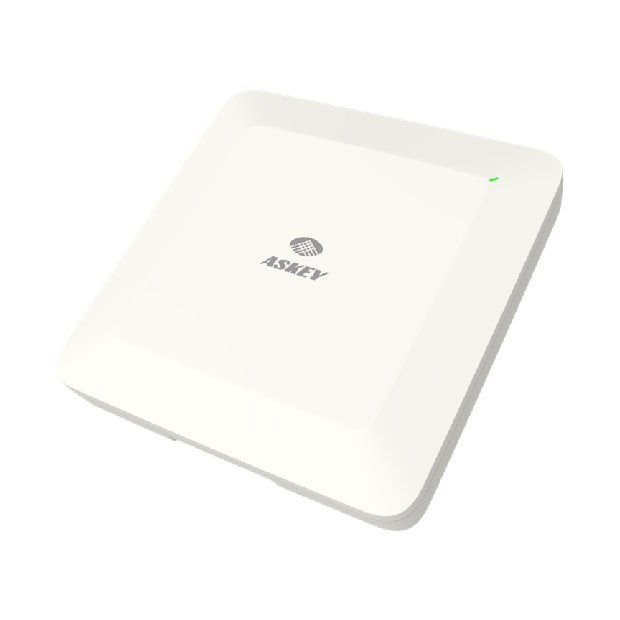

EAI2308P

Indoor Enterprise AP

Dual-band 4 x 4 Wi-Fi 6 Enterprise AP including Radio Resource Management Function
Askey EAI2308P provides dual-band dual-concurrent 4 x 4 Wi-Fi 6 (802.1ax) with dedicating scanning WiFi radio for RRM, optimizing channel selection and TX power for entire deployment. Each AP is equipped with built-in AP controller function, capable of controlling multiple APs in the same group, and AP controller will automatically appoint one AP to be its backup for uninterrupted networking with reduced IT cost and collaboration efficiency architecture. By fulfilling enterprise requirements, such as VLAN application, WPA2/WPA3, and QoS, EAI2308P is an appropriate solution for enterprise indoor access point wherever offices, large stores, factories and fields required full Wi-Fi coverage.

The AP also performs all the statistics to Cloud management, and Askey Cloud management SW offers single or multiple groups of enterprise APs with one simple web interface, only available by request. With diverse mounting kits, it supports T-rail, ceiling and wall mount for DC12V or POE+. Economy, flexible on installation and scalability are extra benefits of our indoor enterprise AP.
Share

Specifications

Physical

  • CPU: Qualcomm IPQ8072A quad A53 64bit @2.2Ghz
  • DRAM: DDR4 DRAM : 1GB
  • Flash: eMMC: 4GB
  • Power Input:
    DC input: 12V
    PoE: 802.3at PD
  • Dimensions: 220 x 220 x 43 (W x L x H, mm)
  • Weight: 1.25 kg
  • Interfaces
    1 x 1/2.5 Gbps Ethernet (PoE port)
    1 x 1 Gbps Ethernet
  • LED Indicator: 1 x Multi-color LED
  • Button: Reset to default
  • Power Consumption: 21Watt (802.3at POE+ or DC in)
  • Environmental Conditions:
    Operating temperature: 0°C ~ 50°C
    Operating humidity: 10% ~ 95% non-condensing
    Storage temperature: -40°C ~ 80°C
    Storage humidity: 5% ~ 95% non-condensing
  • AntennaType:
    4 x integrated single band, 2.4~2.5 GHz omnidirectional antennas
    4 x integrated single band, 5.1~5.8 GHz omnidirectional antennas
    1 x internal dual band WiFi antenna
  • Mounting: T-rail, ceiling or wall mountable


Wi-Fi

  • Standards:
    2.4 Ghz 802.11b/g/n/ax
    5 Ghz 802.11a/n/ac/ax
  • Supported Rates:
    802.11ax: 4 ~ 2400 Mbps
    802.11ac: 6.5 ~ 1732 Mbps
    802.11n: 6.5 ~ 600 Mbps
    802.11a: 6 ~ 54 Mbps
    802.11g: 6 ~ 54 Mbps
    802.11b: 1 ~ 11 Mbps
  • Radio Chains:
    2.4 Ghz 4 x 4: 4
    5 Ghz 4 x 4: 4
  • Spatial Streams: 4 for both SU-MIMO & MU-MIMO
  • Antenna:
    2.4 Ghz up to 5 dBi
    5 Ghz up to 4.5 dBi
  • Performance:
    2.4 Ghz : 1100 Mbps
    5 Ghz : 2400 Mbps
  • Maximum Transmit Power:
    2.4 GHz: up to 27 dBm *1 (combined power)
    5 GHz: up to 28 dBm *1 (combined power)
  • Minimum Receiver Sensitivity:
    2.4 Ghz HT20/VHT20/HE20: -93 dBm @MCS0
    2.4 Ghz HT40/VHT40/HE40: -94 dBm @MCS0
    5 Ghz HT20/VHT20: -95 dBm @ MCS0
    5 Ghz VHT40/HE40: -93 dBm @ MCS0
    5 Ghz VHT80/HE80: -89 dBm @ MCS0
  • Max Number of Clients: Up to 128 per radio, 256 per AP
  • ESSIDs: Up to 4 per radio

Software Features

  • IP and VLAN:
    DHCP server/relay
    Multiple SSIDs and VLAN mapping
  • Wi-Fi:
    WMM queues priority
    Rate limitation per SSID
    Access list
    Client Authentication Protocols
    Interwork with external RADIUS Server
    WPA2/WPA3 enterprise/personal
    Hotspot2.0
    Beamforming
    Airtime Fairness
    Client Isolation
  • Radio Resource Management:
    Automatic channel allocation
    Automatic Power Control
    Coverage Hole Detection
    Load Balancing
    Fast Roaming
    Band Steering
  • Management:
    Multi-tenants
    Grouping and profiles
    Mass Provisioning and FOTA
    Account management
    Zero touch deployment
  • Monitoring:
    AP, Clients Monitoring
    Rogue AP detection/reporting
    Visualization & report for AP
    Location Service and Network Map
    Data monitoring and notification
    System Performance Monitoring
    Logs monitoring
    Client statistics and detection
