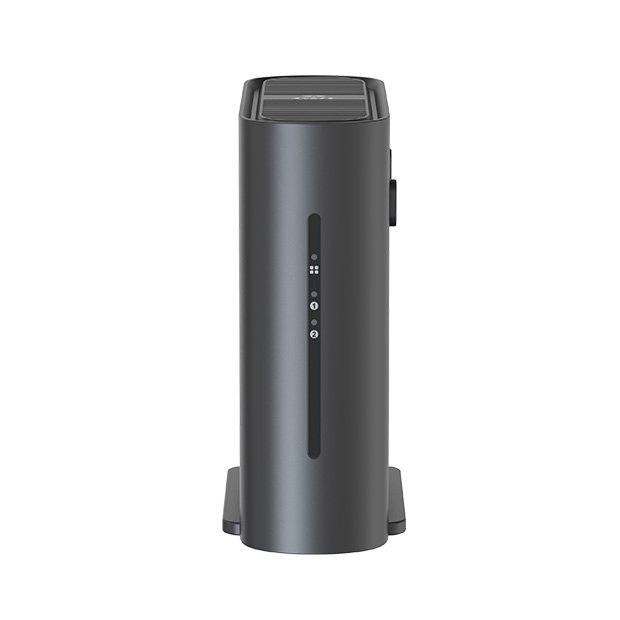

TCG400-v

DOCSIS 4.0 EMTA Cable Modem

TCG400-v is a CableLabs DOCSIS /EuroDOCSIS 3.0/3.1/4.0 FDD and PacketCable™ 1.0/1.5/2.0 compliant EMTA cable modem. One 10 Gbps Ethernet port and two voice ports allow the device to provide multi-Gigabit Internet access up to 10 Gbps as well as high-quality telephone voice and fax/modem service for residential, commercial and educational users on public and private networks through an existing CATV infrastructure.

Equipped with an optional external backup battery, it allows phone calls during 24 hours in case of power outages. TCG400-v helps Multiple System Operators reduce the total cost of ownership, such as an upstream diagnostics analyzer and a downstream spectrum analyzer, providing features to diagnose cable signal issues.
Share

Specifications

Hardware

  • Coax RF
    • 75ohm F-type Female RF connector,
      Docsis 4.0 FDD compliant
    • Full Band Capture, Backward
      compatible with Docsis 3.1
    • Switchable diplexer support D4 FDD
      UHS and D3.1 HS band
  • LAN
    • 1 x 10 Gbps, RJ-45 Ethernet connectors
      with Link Status LED
  • LEDs
    Status (Multi-color), Tel 1, Tel 2
  • Voice
    2 x RJ-11 FXS Port

Voice

  • Supported Standard                                                                                      One of the PacketCable 1.5/2.0 or SIP upgradable
  • Ring Capability                                                                                            5 REN Load per line

D4.0 FDD UHS Band

  • RF Downstream
    • Frequency Range
      492-1794 MHz edge to edge
    • Bonded Channel
      Up to 5 x OFDM + 32 x SCQAM Channels
  • RF Upstream
    • Frequency Range
      5-85, 108-396 MHz edge to edge
    • Bonded Channel
      Up to 7 x OFDMA + 8 x SCQAM US Channels

D3.1 HS Band

  • RF Downstream
    • Frequency Range 258-1794 MHz
      edge to edge
    • Bonded Channel
      Up to 5 x OFDM + 32 x SCQAM Channels
  • RF Upstream
    • Frequency Range 5-204 MHz edge to edge
    • Bonded Channel
      Up to 2 x OFDMA + 8 x SCQAM US Channels
