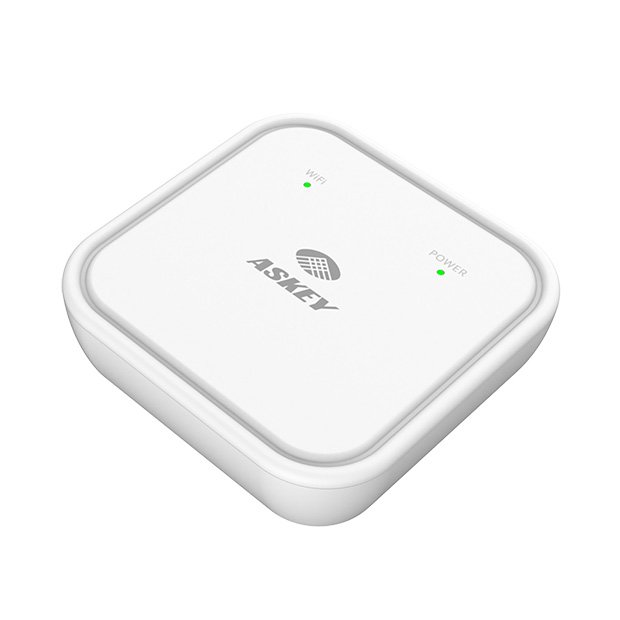

BLL3000W

Home IoT Gateway

Enjoy smart life with simple settings

Askey BLL3000W IoT gateway supports Wi-Fi, BT and Zigbee. It provides the connectivity to home sensors and IP cameras for managing and monitoring home environment anytime and anywhere, ideal for smart life with simple settings.
Share

Specifications

Key Features

  • System
    • SoC: Dual Core Arm® Cortex®-A55 SoC
    • DRAM: DDR4 1GBytes
    • Flash: eMMC 8GBytes
  • Wi-Fi 2.4G/5G
    • Support IEEE 802.11 a/b/g/n/ac 1x1
    • Frequency Range: 2.400 GHz ~ 2.4835 GHz,
      5.15~5.35GHz, 5.47~5.725GHz, 5.725~5.85GHz
  • Bluetooth 5 & Zigbee dual mode
    • Support Bluetooth 5.3 BLE
    • Support Zigbee 3.0

Interface

  • LEDs
    • System : Green LED x1
    • RF status : RGB LED x1
  • Power
    • USB Type C – 5V1A

Dimension

  • 70.1 x 70.1 x 20.6 (mm, WxLxH)

Environmental

  • Temperature : 0 to 45 ℃
  • Humidity : 5% to 95%                  (No condensation)
