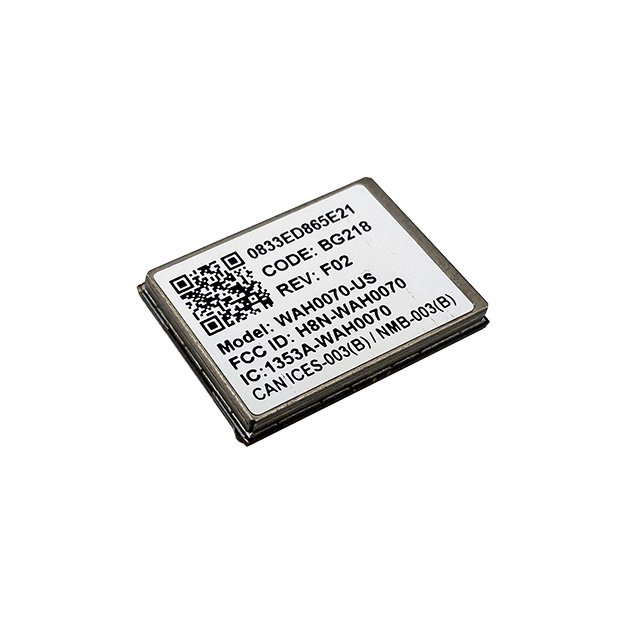

WAH0070
Wi-Fi HaLow Module
Get long distance transmission capability easily
Wi-Fi HaLow, 802.11ah, is a low-power long-distance wireless communication technology proposed by the Wi-Fi Alliance for the Internet of Things. Complied with Wi-Fi standards, it is easy to be integrated with Wi-Fi networks and ensures the same security as Wi-Fi.
Askey WAH0070 module adopts LGA form factor and contains Newracom NRC7394 chipset, featuring low standby power consumption, wide operating temperature, long transmission range and easy system integration, suitable for built-in to the AP or router and terminal devices.
Wi-Fi HaLow, 802.11ah, is a low-power long-distance wireless communication technology proposed by the Wi-Fi Alliance for the Internet of Things. Complied with Wi-Fi standards, it is easy to be integrated with Wi-Fi networks and ensures the same security as Wi-Fi.
Askey WAH0070 module adopts LGA form factor and contains Newracom NRC7394 chipset, featuring low standby power consumption, wide operating temperature, long transmission range and easy system integration, suitable for built-in to the AP or router and terminal devices.
Specifications
Feature
- Newracom NRC7394 chipset
- Full IEEE 802.11ah compatibility with enhanced performance
- 1/2/4 MHz channel bandwidth, up to 15Mbps data rate
- WPA2/WPA3/WPS support
- AP and STA, 802.11s mesh network support
- Support 921~927MHz (JP version), 902~928MHz (US version)
- Support Host and Standalone modes
- TELEC/FCC certification completed
Main Interface
- UART and SPI support for host interface
Serial Flash (2Mbyte, optional 4Mbyte) for XI
Peripherals
- GPIO, AUXADC, I2C, SPI and UART
Dimension
- LGA form factor
- 18 x13.5 x 2.1 (mm, WxLxH)
Environmental
- Temperature: -40 to 85℃
- Humidity : 20% to 90% RH
