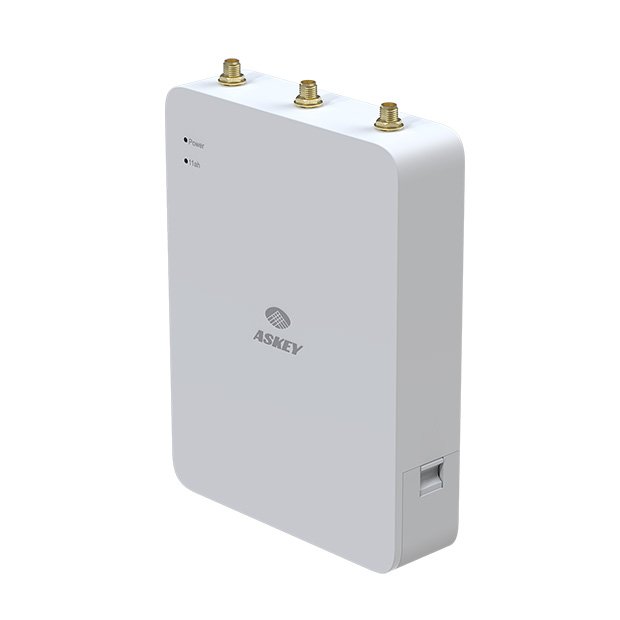

RTM4100AH

Wi-Fi HaLow Router

Stream remote messages without time lag

Wi-Fi HaLow, 802.11ah, is a low-power and long-distance wireless communication technology proposed by the Wi-Fi Alliance for the Internet of Things. By the adoption of Wi-Fi standards, it is easy to be integrated with Wi-Fi networks and ensures the same security as Wi-Fi.

Askey RTM4100AH ​​router provides a stable, reliable, and agile network environment that achieves large-scale long-distance transmission and meets the full signal coverage needs of outdoor or large buildings, especially suitable for agricultural, fishery, industrial and commercial use.

RTM4100AH ​​can connect to the cloud via LTE by USB dongle, Ethernet, and Wi-Fi. With Askey’s VaaS platform Vision X, it fulfills one-stop device management and data analysis without collecting information regularly any more.
Share

Specifications

Connectivity

  • 802.11ah (Sub 1GHz) 1T1R
  • 802.11b/g/n (2.4GHz) 1T1R
  • BLE5.1 (2.4GHz) 1T1R
  • Ethernet (10/100/1000 Base-T) x2 WAN/LAN 5.1

Feature

  • AP/Station mode
  • RF power 27dbm @11ah
  • USB2.0 port x1, Support USB LTE dongle
  • WPA2/WPA3
  • 802.11s Mesh
  • FOTA
  • Ingress Protection: IP55
  • Size:120 x 33 x 160 (WxDxH, mm)
