LTE+Wi-Fi 5 Dual-Band Enterprise Outdoor AP
EAO3402P

LTE+Wi-Fi 5 Dual-Band Enterprise Outdoor AP

Featuring multi-WAN connectivity support Cat.6 LTE-A mobile broadband and SFP for GPON/EPON/Active Ethernet gigabit fiber broadband backhauling, that is ideal for smart city, smart transportation, large campus, rural broadband and public Wi-Fi access services deployment.

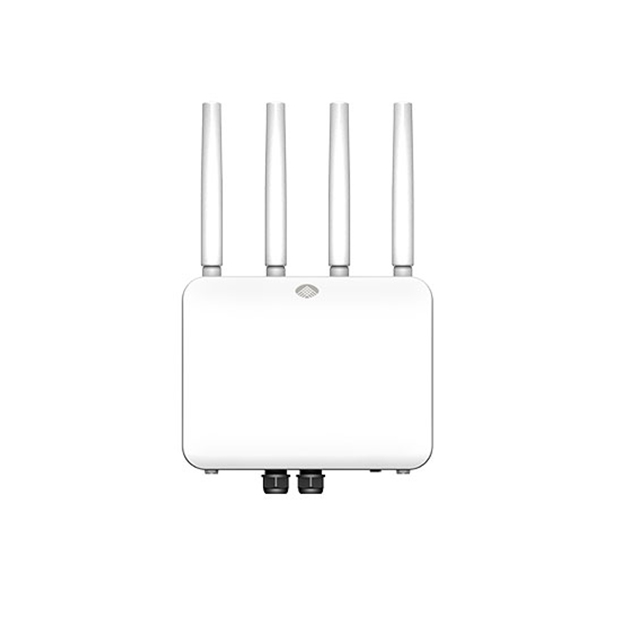

The Askey EAO3402P is a ruggedized carrier-grade, concurrent dual-band 2x2 MU-MIMO 802.11ac outdoor access point, designed specifically to withstand harsh weather conditions in outdoor and industrial environments. The EAO3402P delivers a maximum 1.3Gbps aggregate link rate with concurrent 2.4GHz and 5GHz radio.

Featuring multi-WAN connectivity support Cat.6 LTE-A mobile broadband and SFP for Active Ethernet gigabit fiber broadband backhauling, that is ideal for smart city, smart transportation, large campus, rural broadband and public Wi-Fi access services deployment.

Upload gigabit Ethernet and upload LTE ports are configurable for WAN failover design, providing solid connection for backbone. The EAO3402P, equipped with IP67 water/dust-protected and rust-resistant metal housing, makes it extremely sturdy and flexible to deploy.

Easy to integrate with 3rd-party cloud-based Wi-Fi management, the EAO-3402P supports a wide-array of value-added applications required by enterprises and organizations, such as bandwidth control, user authentication, centralized WLAN management, advertising push, and much more.
Share

Specifications

Physical

  • CPU: Qualcomm IPQ4019 quad-core Cortex-A7
  • DRAM: DDR3 DRAM 512MB
  • NAND Flash: 128MB
  • NOR Flash: 8MB
  • Dimensions: 260 mm (L) x 200 mm (W) x 75.5mm (H) (without External Antenna )
  • Interfaces: GE1 WAN : 1 x 100/1000Base-T Ethernet, RJ-45 with 802.3at PoE
    GE2 LAN: 1 x 100/1000Base-T Ethernet, RJ-45
    1 x SFP slot
    1 x Micro SIM slot
    4 x N-type connector for antenna
    LED Indicator: Single RGB LED
  • Button: Reset / Restart
  • Power Consumption: 12W
  • Antenna type:
    2 x external N-type dual-band Wi-Fi antenna
    2 x external N-type LTE-A antenna
  • Mounting: Pole and wall mountable

Wi-Fi

  • Standards: 2.4GHz - 802.11b/g/n 5GHz: 802.11a/n/ac
  • Radio Chains: 2 x 2
  • Performance: 2.4GHz - up to 400 Mbps, 5GHz - up to 867 Mbps
  • ESSIDs: Up to 8 per radio
  • Security: WPA,WPA2-PSK, WPA2-Enterprise with 802.1x. TKIP and AES encryption
  • QOS: WMM, WMM – Powersave (uAPSD), Per client TX and RX capacity limit per SSID, Maximum number of clients limit per SSID

LTE-Option E (Default)*

  • Cellular standard: Cat. 6 LTE (FDD / TDD): B1/3/5/7/8/20/28/32/38/40/41
  • LTE bandwidth: 5, 10, 15, 20MHz, 2 x CA
  • Data rate: DL/UL - 300Mbps/50Mbps
  • MIMO: 1T2R MIMO
  • Region: EMEA/Brazil/APAC (including Taiwan, excluding Japan and CMCC)
